      5 inch Scaffold caster - Square stem swivel locking caster - TPR caster | SCSSA-125032B-92







      • Part No.: SCSSA-125032B-92
        •

      • Wheel Dia.: 125 mm / 5 inch caster
        •









      • Tread Width: 32 mm / 1.25 inch caster
        •

      • Wheel Type: TPR wheel caster
        •









      • Caster Type: Swivel with total lock caster
        •

      • Fitting Type: Square stem caster
        •









      • Load Cap.: 120 kg / 265 lbs caster
        •

      • APP: Scaffolding caster
        •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























      Technical Data


      CASTER TECHNICAL°C / mm / kg°F / inch / lbs
      Wheel Diameter125 mm5 inch
      Width of Tread32 mm1.25 inch
      Wheel MaterialGrey TPR wheelGrey TPR wheel
      Hardness of TreadShore A 77Shore A 77
      Wheel BearingBall bearingBall bearing
      Fitting TypeSolid square stem casterSolid square stem caster
      Square Stem Type32×32 mm1.26×1.26 inch
      Square Stem Length100 mm4 inch
      Hole Spacing (L1)63.5 mm2.5 inch
      Hole diameter (P1)12.7 mm0.5 inch
      Hole Spacing (L2)N/AN/A
      Hole diameter (P2)N/AN/A
      Swivel Offset35 mm1.38 inch
      Swivel Radius97.5 mm3.84 inch
      Overall Height160 mm6.30 inch
      Caster BrakeTotal lock swivel casterTotal lock swivel caster
      Load Capacity120 kg265 lbs
      Caster Weightkglbs
      Part No.SCSSA-125032B-92SCSSA-125032B-92
      SKU69125008406912500840


      Features


      5 inch Scaffold caster - Solid square stem locking caster - TPR wheel caster | SCSSP-125032-92
      SCSSA series solid square stem scaffold casters are designed to fit square tube posts form mobile shelf carts and other transport units. Easy to install-simply remove adjustable foot assembly on each post, and gently tap the casters into the post until fully inserted. Non-marking, the tread provides good floor protection along with quiet operation.
      Featured 5 inch solid square stem scaffold caster with TPR wheel
      • Castor Housing: The housing is made of high-quality pressed
	steel.
      • Mounting and Swivel Cross Section: 1.25 inch solid square stem type with cross drilled hole
			scaffolding caster. Pressed steel double ball raceway in swivel
			head.
      • Total lock brake caster.
      • Grey Thermo-Plastic-Rubber material wheel
      Custom Made  5 inch square pipe stem scaffold caster with Grey TPR wheel
      • For customization & special application options, consult please.

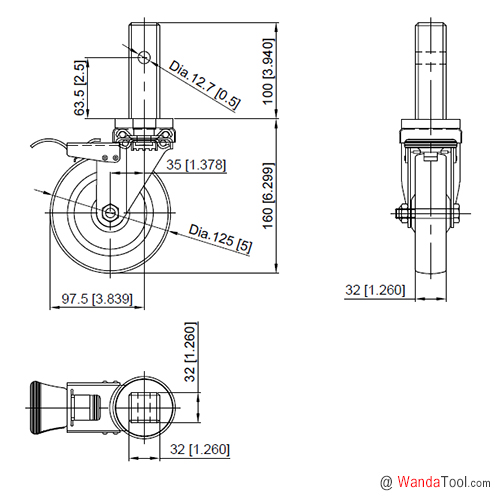

      Drawing



      Accessories & Versions







      5×1.25英寸方桿腳手架橡膠腳輪5×1.25英寸方桿腳手架聚氨酯腳輪
