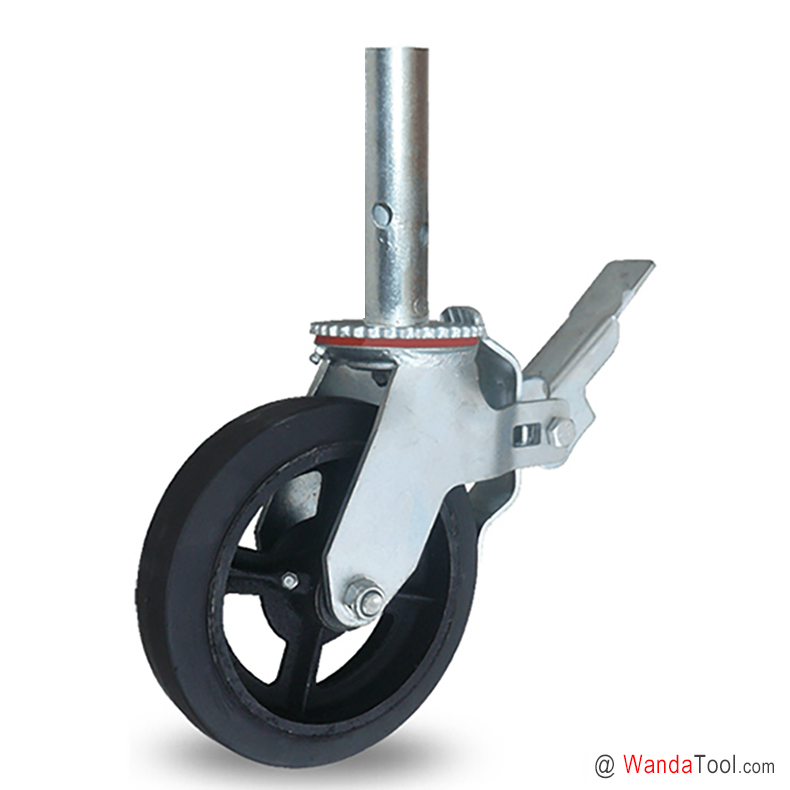

      Scaffolding caster - 8" Scaffold caster - 38mm OD Tube stem scaffold caster with moldon rubber wheel  | SCAIA-200050R-12







      • Part No.: SCAIA-200050R-12
        •

      • Wheel Dia.: 200 mm / 8 inch caster
        •









      • Tread Width: 50 mm / 2 inch caster
        •

      • Wheel Type: Rubber on cast iron wheel
        •









      • Caster Type: Total lock swivel caster
        •

      • Fitting Type: 38mm OD tube caster
        •









      • Load Cap.: 300 kg / 660 lbs caster
        •

      • APP: Tube type scaffolding caster
        •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























      Technical Data


      CASTER TECHNICAL°C / mm / kg°F / inch / lbs
      Wheel Diameter200 mm8 inch
      Width of Tread50 mm2 inch
      Wheel MaterialPU on cast iorn wheelPU on cast iorn wheel
      Hardness of TreadShore A 85Shore A 85
      Wheel BearingRoller bearingRoller bearing
      Fitting TypeTube type casterTube type caster
      Tube Type38 mm OD / 32 mm ID1.5 inch OD / 1.25 inch ID
      Tube Length150 mm6 inch
      Hole Spacing (L1)75 mm3 inch
      Hole diameter (P1)--
      Hole Spacing (L2)--
      Hole diameter (P2)--
      Swivel Offset53 mm2.08 inch
      Swivel Radius153 mm6.02 inch
      Overall Height237 mm9.33 inch
      Caster BrakeSwivel caster with total lockSwivel caster with total lock
      Load Capacity300 kg660 lbs
      Caster Weight

      Part No.SCAIA-200050R-12SCAIA-200050R-12
      SKU69200000830006920000083000


      Features


      8"×2" 38mm OD Tube stem scaffold caster with moldon rubber wheel |
	SCAIA-200050R-12
      8-inch Rubber on cast iron core scaffold casters with 38mm OD tube stem are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAIA-200050R-12 series scaffold caster has the characteristics of scientific design, convenient operation and safe use.
      WandaTool's SCAIB tube type scaffold castors are designed to accommodate a variety of scaffold tubing including Mild Steel or Aluminium with an outer diameter of 48.3mm. Solid round is also suitable with an outer diameter not exceeding 50mm.
      Featured 8 inch 38mm OD Tube stem scaffold caster with moldon rubber wheel
      ?	Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment.  Formed rig is stronger than welded design.
      ?	Mounting and Swivel Cross Section: 38mm OD and 32mm ID tube type scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.
      ?	Swivel head sealed: Polyurethane seal ring keeps out debris.
      ?	Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.
      ?	Lubrication: Zerk in swivel section and wheel for easy lubrication.
      ? Moldon Rubber on Cast Iron Wheel: This Mold-on cushion rubber treads are vulcanized to cast iron cores. The soft rubber tread affords a cushion effect to the load. These wheels are highly shock-absorbing and provide quiet operation, while dampening vibration.
      ?	Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
      ?	Lubrication: Zerk in swivel section and wheel for easy lubrication.
      Custom Made 8 inch 38mm OD Tube stem scaffold caster with moldon rubber wheel
      Custom design scaffolding caster available。
