European scaffold castor - EN1004 Scaffold castor - 38mm OD solid stem scaffold castor with PU wheel | SCRFC-200050R-13

Part No.: SCRFC-200050R-13
Wheel Dia.: 200 mm / 8 inch castor

Tread Width: 50 mm / 2 inch castor
Wheel Type: PU on cast iorn wheel

Caster Type: Total lock swivel castor
Fitting Type: 38mm OD solid castor

Load Cap.: 700 kg / 1550 lbs castor
APP: Scaffolding castor

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about European scaffold castor - EN1004 Scaffold castor - 38mm OD solid stem scaffold castor with PU wheel \| SCRFC-200050R-13.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	200 mm	8 inch
Width of Tread	50 mm	2 inch
Wheel Material	Polyurethane on cast iron	Polyurethane on cast iron
Hardness of Tread	Shore A 97	Shore A 97
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Solid stem caster	Solid stem caster
Stem O.D.	38 mm	1.5 inch
Stem Length	53 mm	2.1 inch
Hole Spacing (L1)	-	-
Hole diameter (P1)	-	-
Hole Spacing (L2)	-	-
Hole diameter (P2)	-	-
Swivel Offset	-	-
Swivel Radius	-	-
Overall Height	237 mm	9.33 inch
Caster Brake	Total lock swivel caster	Total lock swivel caster
Load Capacity	700 kg	1550 lbs
Caster Weight	kg	lbs
Part No.	SCRFD-200050R-93BR	SCRFD-200050R-93BR
SKU	6920001000000	6920001000000

Features

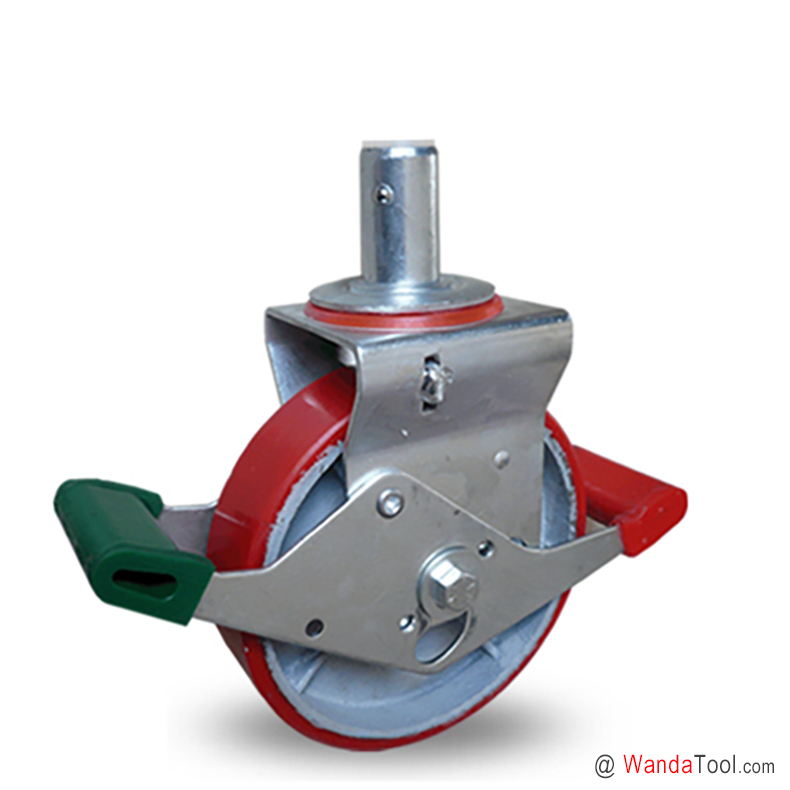

8"×2" European EN1004 38mm OD Solid stem scaffold castor with polyurethane on cast iron wheel | SCRFC-200050R-13

8-inch European EN1004 Solid stem scaffold castors with PU on cast iron wheel are equipped with total lock brakes. This pressed metal casters are zero offset swivel casters that conform to DIN 4422: HD 1004: 1992 and BS 1139: part 3: 1994, combining the swivel lock and brake concept, is made for scaffolding work, built on a zinc passivity steel frame with an advanced design, ensuring rigidity and a long successful working life, with load capacities from 880 to 2,200 lbs.

China Patent: CN103332065 A.

Featured 8 inch European EN1004 38mm OD Solid stem scaffold castor with PU wheel

Castor Housing: The housing is made of high-quality pressed steel.
Mounting and Swivel Cross Section: 38mm OD solid stem scaffolding castor. Pressed steel double ball raceway in swivel head. King bolt and nut construction for added strength.
Swivel head sealed: Polyurethane seal ring keeps out debris.
Total lock brake: Double pedal design, Locking both the wheel and direction simultaneously.
Lubrication: Zerk in wheel for easy lubrication.
Mold-on Polyurethane Wheel: Polyurethane on cast iron wheels are composed of a polyurethane elastomer, open cast molded, on clean, close tolerance cores. The polyurethane tread is chemically bonded to a cast iron core. High capacity polyurethane protects floors, is non-marking and delivers a quieter operation than standard metal wheels.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
