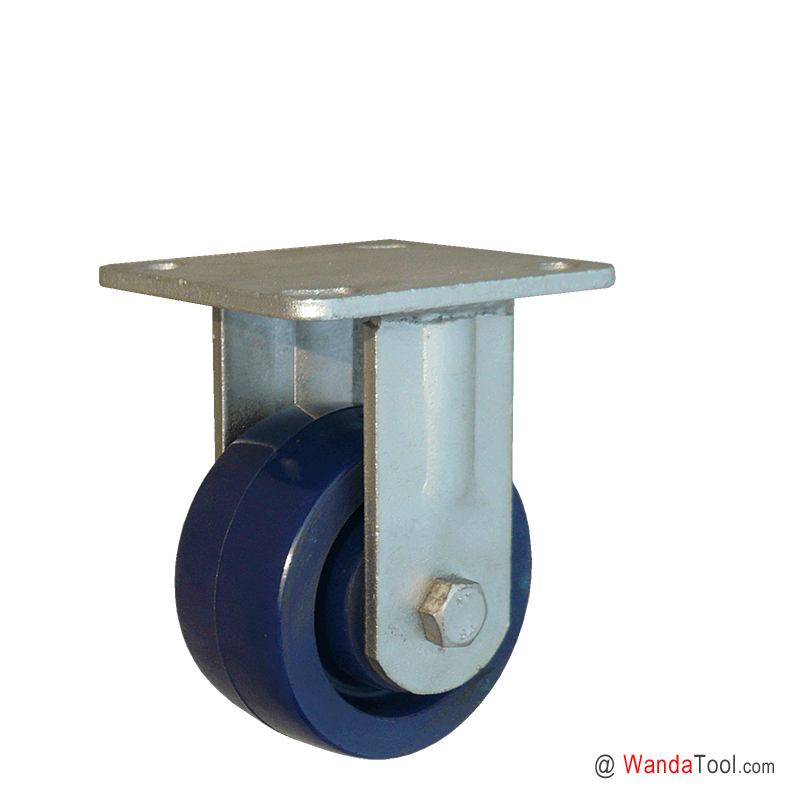

Solid polyurethane caster - 4 inch All solid blue polyurethane rigid caster - 750 lbs Capacity | 600PF-100050R-03

Part No.: 600PF-100050R-03
Wheel Dia.: 100 mm / 4 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Type: Blue solid polyurethane wheel

Caster Type: Rigid caste
Fitting Type: Top plate caster

Load Cap.: 340 kg / 750 lbs caster
APP: Medium heavy duty industrial caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Solid polyurethane caster - 4 inch All solid blue polyurethane rigid caster - 750 lbs Capacity \| 600PF-100050R-03.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	100 mm	4 inch
Tread Width	50 mm	2 inch
Wheel Material	Blue solid polyurethane wheel	Blue solid polyurethane wheel
Hardness of Tread	Shore D 60	Shore D 60
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Top plate caster	Top plate caster
Size of Plate	115×100 mm	4.5×4 inch
Plate Hole Centers	92×75 to 75×67 mm	3.625×3 to 3×2.625 inch
Plate Hole	11 mm	0.43 inch
Swivel Offset	N/A	N/A
Swivel Radius	N/A	N/A
Overall Height	141 mm	5.55 inch
Caster Brake	No brake rigid caster	No brake rigid caster
Standard
Load Capacity	340 kg	750 lbs
Caster Weight
Part No.	600PF-100050R-03	600PF-100050R-03
SKU	6910006061	6910006061

Features

4"×2" Medium heavy duty blue solid polyurethane rigid caster | 600PF-100050R-03

4"×2" Solid polyurethane rigid casters are non marking and non conductive and abrasion resistant. The absence of a metal center eliminates bond failure as a cause for wheel replacement. These casters are especially suited for use with stainless steel casters in wet and corrosive applications. They are perfect for food processing environments, Pharmaceutical Laboratories, Hospitals, and Food Plants.

Featured 4"×2" Medium heavy duty blue solid polyurethane rigid caster

Top Plate & Yoke Base: Cold formed from 6mm steel plate. Contact us for Custom Made notched yoke base for factory or installable 4-position swivel lock.
Swivel Section: Smooth formed, double ball bearing raceways swivel head.
Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.
Blue Solid Polyurethane Wheel: All solid polyurethane wheels are non marking and non conductive and abrasion resistant.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
Finish: Zinc plated to resist corrosion.

Custom made 4"×2" Medium heavy duty blue solid polyurethane rigid caster

Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.
Swivel head sealed: Rubber seals available.
Side Washers: Metal step retaining thrust washers available.
Wheel Axle: 1/2-13 UNC hollow axle with grease fitting available.
Finish: Electrophoresis black plated to resist corrosion available.
