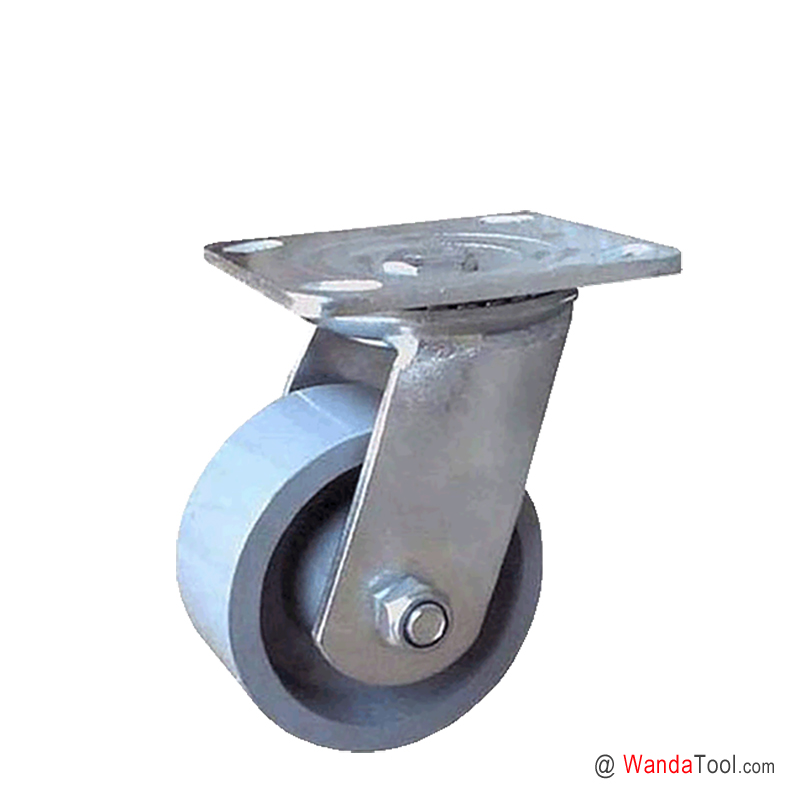

4×2 inch Cast iorn caster - Swivel cast iron caster - 990 lbs Capacity | 600PS-100050R-01

Part No.: 600PS-100050R-01
Wheel Dia.: 100 mm / 4 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Type: Cast iron wheel caster

Caster Type: Swivel caster
Fitting Type: Top plate caster

Load Cap.: 450 kg / 990 lbs caster
APP: Medium heavy duty caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about 4×2 inch Cast iorn caster - Swivel cast iron caster - 990 lbs Capacity \| 600PS-100050R-01.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	100 mm	4 inch
Tread Width	50 mm	2 inch
Wheel Material	Cast iorn wheel	Cast iorn wheel
Hardness of Tread
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Top plate caster	Top plate caster
Size of Plate	115×100 mm	4.5×4 inch
Plate Hole Centers	92×75 to 75×67 mm	3.625×3 to 3×2.625 inch
Plate Hole	11 mm	0.43 inch
Swivel Offset	26 mm	1 inch
Swivel Radius	76 mm	3 inch
Overall Height	141 mm	5.55 inch
Caster Brake	No brake swivel caster	No brake swivel caster
Standard
Load Capacity	450 kg	990 lbs
Caster Weight
Part No.	600PS-100050R-01	600PS-100050R-01
SKU	6910006100	6910006100

Features

4"×2" Medium heavy duty cast iorn swivel caster | 600PS-100050R-01

4"×2" Cast iron swivel casters have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PS-100050R-01 Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.

Featured 4"×2" Medium heavy duty cast iorn swivel caster

Top Plate & Yoke Base: Cold formed from 6mm steel plate. Contact us for Custom Made notched yoke base for factory or installable 4-position swivel lock.
Swivel Section: Smooth formed, double ball bearing raceways swivel head.
Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
Finish: Zinc plated to resist corrosion.

Custom made 4"×2" Medium heavy duty cast iorn swivel caster

Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.
Swivel head sealed: Rubber seals available.
Side Washers: Metal step retaining thrust washers available.
Wheel Axle: 1/2-13 UNC hollow axle with grease fitting available.
Finish: Electrophoresis black plated to resist corrosion available.
