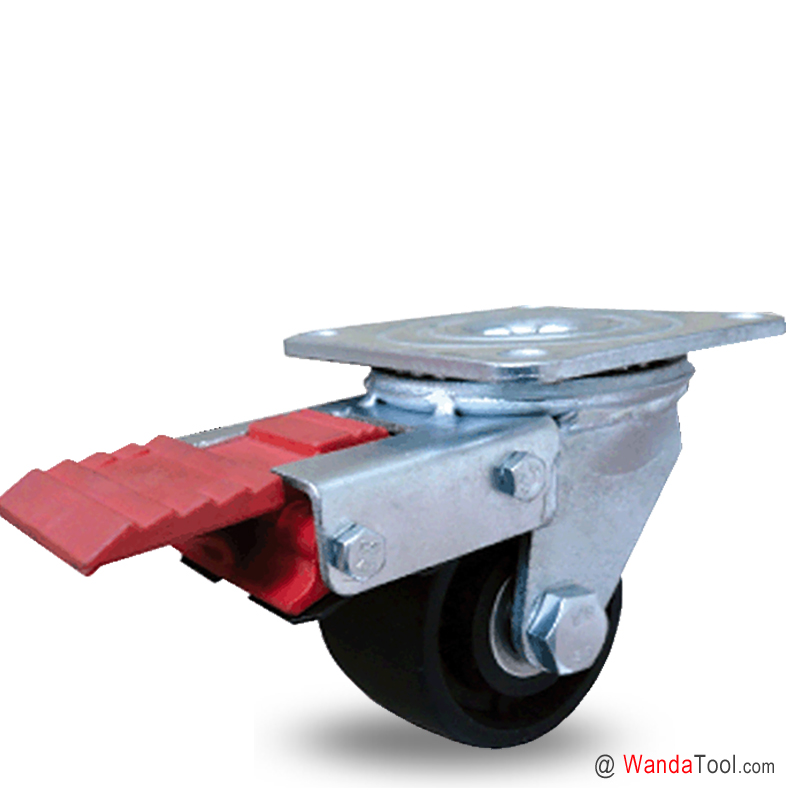

      Low profile caster - 3 inch Low profile business machine total lock caster - MC Nylon wheel - 1200 lbs Capacity | 710PS-075047R-MC-DUB







      • Part No.: 710PS-075047R-MC-DUB
        •

      • Wheel Dia.: 75 mm / 3 inch
        •









      • Tread Width:  47 mm / 1.85 inch
        •

      • Wheel Mat.: Black MC nylon wheel
        •









      • Type:  Low profile swivel total lock caster
        •

      • Mounting: Top plate
        •









      • Load Cap.: 545 kg / 1200 lbs
        •

      • APP: Business machine caster
        •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























      Technical Data


      CASTER TECHNICAL°C / mm / kg°F / inch / lbs
      Wheel Diameter75 mm3 inch
      Width of Tread47 mm1.85 inch
      Wheel MaterialMC Nylon wheelMC Nylon wheel
      Hardness of TreadShore D 85Shore D 85
      Wheel BearingRoller bearingRoller bearing
      Mounting PlateTop plateTop plate
      Size of Plate100×100 mm3.94×3.94 inch
      Plate Hole Centres78×78 mm3.07×3.07 inch
      Plate Hole10.2 mm0.4 inch
      Swivel Offset21 mm0.88 inch
      Swivel Radius60 mm2.34 inch
      Overall Height107 mm4.21 inch
      Caster BrakeTotal lock swivel casterTotal lock swivel caster
      Standard

      Load Capacity545 kg1200 lbs
      Caster Weight

      Part No.710PS-075047R-MC-DUB710PS-075047R-MC-DUB
      SKU69075002100006907500210000


      Features


      3"×1.85" Low profile business machine swivel caster with total lock | 710PS-050047R-MC-DUB
      3 inch Low profile business machine swivel caster provides maximum weight distribution at lowest possible overall height. Designed for business machines and other OEM products including medical equipment and electrical/electronic enclosures.
      Featured 3" Business machine low profile total lock caster
      ?	Top Plate & Yoke Base: Cold formed from 5 mm steel plate. 5 mm steel formed to increase strength and welded inside and outside to yoke base
      ?	Caster Brake: Total lock brake, lock swivel head and wheel tread.
      ?	Swivel Section: Smooth formed, double ball bearing raceways swivel head.
      ?	Bearing & Axle: Roller bearing with drilled hardened steel spanner bushing
and steel side washers. 1/2" diameter wheel axle complete with lock nut.
      ?	Lubrication: Zerk in swivel section and wheel for easy lubrication.
      ?	Finish: Zinc plated to resist corrosion.
      Custom made 3 inch Low profile business machine total lock swivel caster

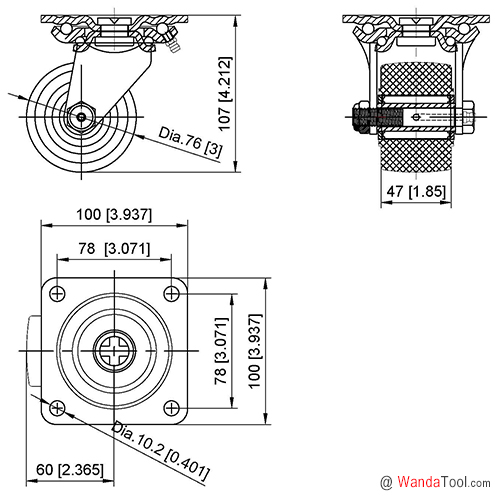

      Drawing



      Accessories & Versions



      Download
