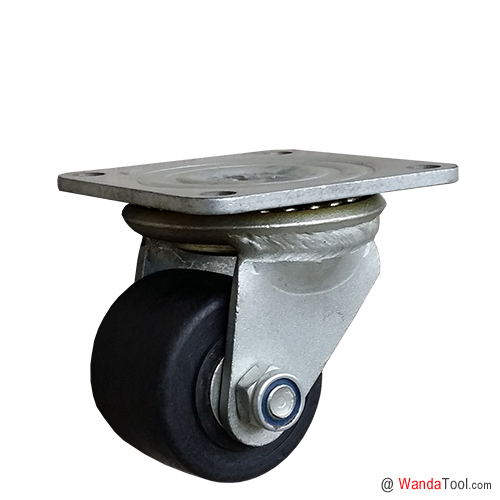

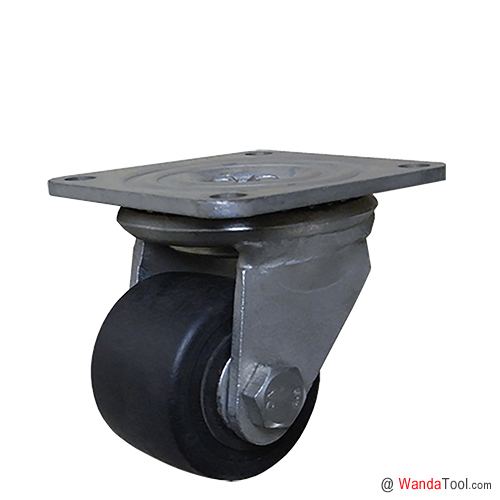

Low profile caster - 2.5 inch Heavy duty low profile swivel caster - Nylon wheel- 880 lbs Capacity | 710PS-065047R-04

Model No.: 710PS-065047R-04
Wheel Dia.: 65 mm / 2.5 inch

Tread Width: 47 mm / 1.85 inch
Wheel Mat.: Black nylon wheel

Type: Heavy duty low profile
Mounting: Top plate

Load Cap.: 400 kg / 880 lbs
APP: Low profile caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Low profile caster - 2.5 inch Heavy duty low profile swivel caster - Nylon wheel- 880 lbs Capacity \| 710PS-065047R-04.

Details

Technical Data

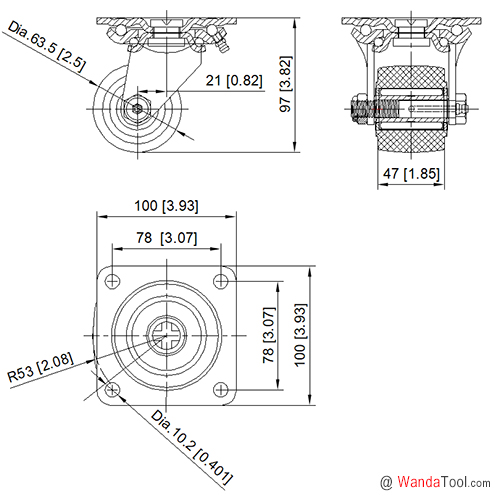

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	65 mm	2.5 inch
Width of Tread	47 mm	1.85 inch
Wheel Material	Polyamide wheel	Polyamide wheel
Hardness of Tread	Shore D 85	Shore D 85
Wheel Bearing	Roller bearing	Roller bearing
Mounting Plate	Top plate	Top plate
Size of Plate	100×100 mm	3.94×3.94 inch
Plate Hole Centres	78×78 mm	3.07×3.07 inch
Plate Hole	10.2 mm	0.4 inch
Swivel Offset	21 mm	0.82 inch
Swivel Radius	53 mm	2.08 inch
Overall Height	97 mm	3.82 inch
Caster Brake	No brake swivel caster	No brake swivel caster
Standard
Load Capacity	400 kg	880 lbs
Caster Weight
Part No.	710PS-065047R-04	710PS-065047R-04
SKU	6906500200000	6906500200000

Features

2.5"×1.85" Low profile business machine swivel caster | 710PS(b)-050047R-04

2 inch Low profile business machine swivel caster provides maximum weight distribution at lowest possible overall height. Designed for business machines and other OEM products including medical equipment and electrical/electronic enclosures.
