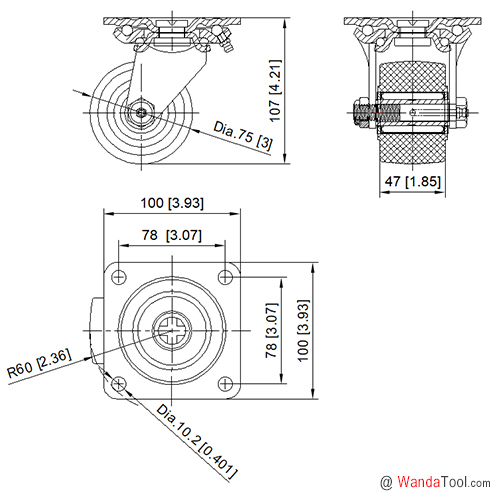

| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 75 mm | 3 inch |
| Width of Tread | 47 mm | 1.85 inch |
| Wheel Material | MC Nylon wheel | MC Nylon wheel |
| Hardness of Tread | Shore D 85 | Shore D 85 |
| Wheel Bearing | Roller bearing | Roller bearing |
| Mounting Plate | Top plate | Top plate |
| Size of Plate | 100×100 mm | 3.94×3.94 inch |
| Plate Hole Centres | 78×78 mm | 3.07×3.07 inch |
| Plate Hole | 10.2 mm | 0.4 inch |
| Swivel Offset | 21 mm | 0.88 inch |
| Swivel Radius | 60 mm | 2.34 inch |
| Overall Height | 107 mm | 4.21 inch |
| Caster Brake | No brake swivel caster | No brake swivel caster |
| Standard | ||
| Load Capacity | 545 kg | 1200 lbs |
| Caster Weight | ||
| Part No. | 710PS-075047R-MC | 710PS-075047R-MC |
| SKU | 6907500200000 | 6907500200000 |

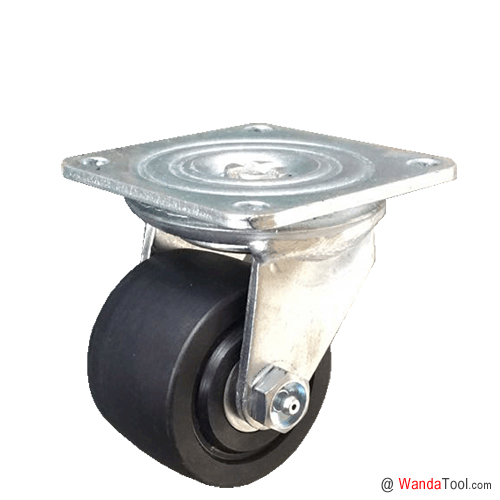

3 inch Low profile business machine swivel caster provides maximum weight distribution at lowest possible overall height. Designed for business machines and other OEM products including medical equipment and electrical/electronic enclosures.
? Top Plate & Yoke Base: Cold formed from 5 mm steel plate. 5 mm steel formed to increase strength and welded inside and outside to yoke base
? Swivel Section: Smooth formed, double ball bearing raceways swivel head.
? Bearing & Axle: Roller bearing with drilled hardened steel spanner bushing and steel side washers. 1/2" diameter wheel axle complete with lock nut.
? Lubrication: Zerk in swivel section and wheel for easy lubrication.
? Finish: Zinc plated to resist corrosion.
