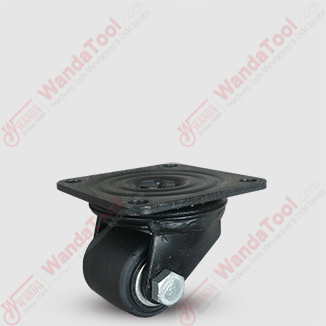

      Low profile caster - 2 inch Low profile business machine caster - 660 lbs Capacity | 710PS(b)-050047R-04

      • Part No.: 710PS(b)-050047R-04
      • Wheel Dia.: 50 mm / 2 inch
      • Tread Width: 47 mm / 1.85 inch
      • Wheel Mat.: Black nylon wheel
      • Type: Low profile swivel caster
      • Mounting: Top plate
      • Load Cap.: 300 kg / 660 lbs
      • APP: Business machine caster
      * Product Name:   Please enter the product name ordered
      * Name:   Please enter your name
      * Tel:   Please enter your phone
      * Email:   Please enter your correct email address
      * Order message:   Please enter your order message



      Technical Data

      CASTER TECHNICAL°C / mm / kg°F / inch / lbs
      Wheel Diameter50 mm2 inch
      Width of Tread47 mm1.85 inch
      Wheel MaterialPolyamide wheelPolyamide wheel
      Hardness of TreadShore D 85Shore D 85
      Wheel BearingRoller bearingRoller bearing
      Mounting PlateTop plateTop plate
      Size of Plate100×100 mm3.94×3.94 inch
      Plate Hole Centres78×78 mm3.07×3.07 inch
      Plate Hole10.2 mm0.4 inch
      Swivel Offset22 mm0.88 inch
      Swivel Radius47 mm1.85 inch
      Overall Height79 mm3.11 inch
      Caster BrakeNo brake swivel casterNo brake swivel caster
      Standard

      Load Capacity300 kg660 lbs
      Caster Weight

      Part No.710PS(b)-050047R-04710PS(b)-050047R-04
      SKU69050002000006905000200000

      Features

      2 inch Low profile business machine swivel caster | 710PS(b)-050047R-04

      2 inch Low profile business machine swivel caster provides maximum weight distribution at lowest possible overall height. Designed for business machines and other OEM products including medical equipment and electrical/electronic enclosures.

      Featured 2" Business machine low profile caster

      ? Top Plate & Yoke Base: Cold formed from 5 mm steel plate. 5 mm steel formed to increase strength and welded inside and outside to yoke base

      ? Swivel Section: Smooth formed, double ball bearing raceways swivel head.

      ? Bearing & Axle: Roller bearing with drilled hardened steel spanner bushing and steel side washers. 1/2" diameter wheel axle complete with lock nut.

      ? Lubrication: Zerk in swivel section and wheel for easy lubrication.

      ? Finish: Black finished and Zinc plated available to resist corrosion.

      Custom made 2 inch Low profile business machine swivel caster

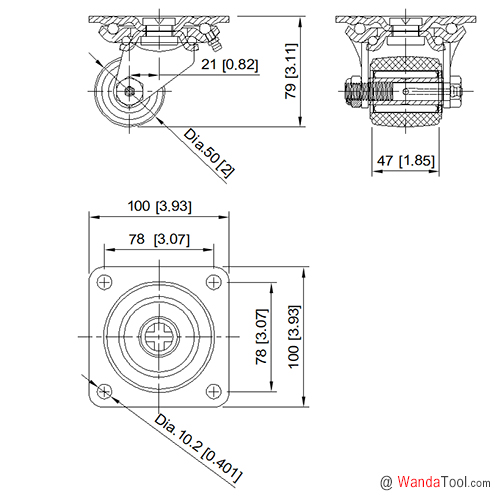

      Drawing
