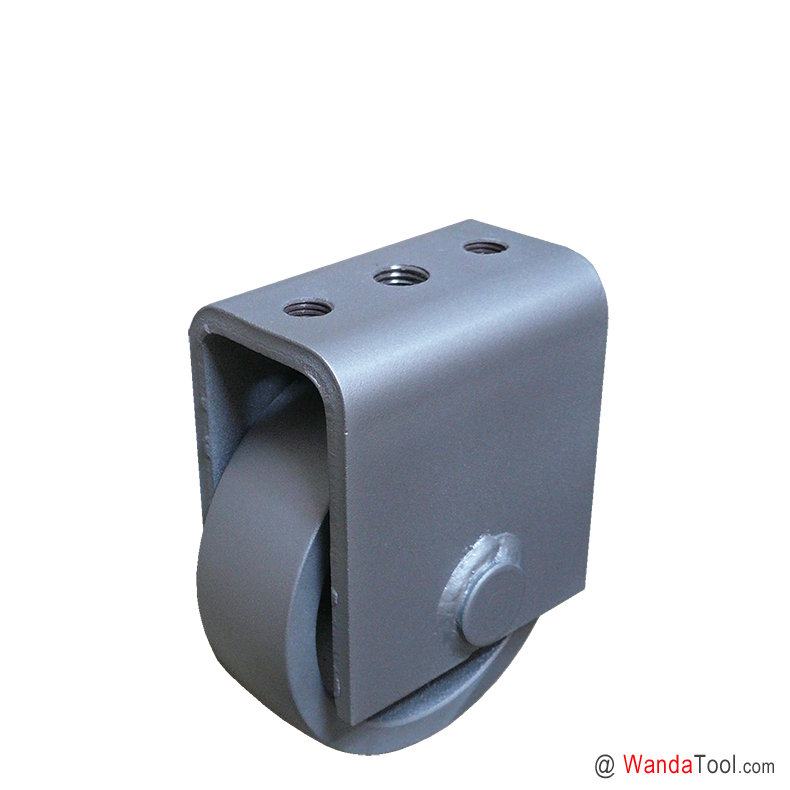

Transformer roller wheel - 150mm Cast iron caster - 3600kg Load capacity | TC150A-150050-01
- Part No.: TC150A-150050-01
- Wheel Dia.: 150 mm / 6 inch
- Tread Width: 50 mm / 2 inch
- Wheel Mat.: Cast iron wheel
- Type: Rigid caste
- Mounting: Top plate
- Load Cap.: 3600 kg / 7936 lbs
- APP: Transformer roller
Technical Data
| 腳輪產品參數 | °C / mm / kg | °F / inch / lbs |
| 輪子直徑(D) | 150mm | 6" |
| 輪面寬度(W) | 50mm | 2" |
| 輪子材質 | 灰鑄鐵腳輪 | 灰鑄鐵腳輪 |
| 輪面硬度 | ||
| 輪子軸承 | 無 | 無 |
| 裝配方式 | 平板式式腳輪 | 平板式腳輪 |
| 裝配板尺寸 (A×B) | 120×80mm | 4.73"×3.15" |
| 裝配孔距 | 80mm | 3.15" |
| 裝配板厚 | 10mm | 0.39" |
| 裝配孔徑(ØP1) | M20mm×1,M16×2 | |
| 裝配總高 | 183mm | 7.2" |
| 腳輪剎車 | 無剎車腳輪 | 無剎車腳輪 |
| 腳輪載荷 | 3600kg | 7936lbs |
| 產品重量 | ||
| 工作溫度 | ||
| 執行標準 | ||
| 產品編號 | TC150A-150050-01 | TC150A-150050-01 |
| SKU | 6915001000000 | 6915001000000 |
Features
150×50變壓器腳輪承重3600kg | TC150A-150050-01
150×50變壓器鑄鐵腳輪承重3600kg，支架采用10mm鋼板沖壓成型，表面鍍鋅。
變壓器腳輪定制
可根據客戶要求定制生產。
Drawing
Accessories & Versions
Download
