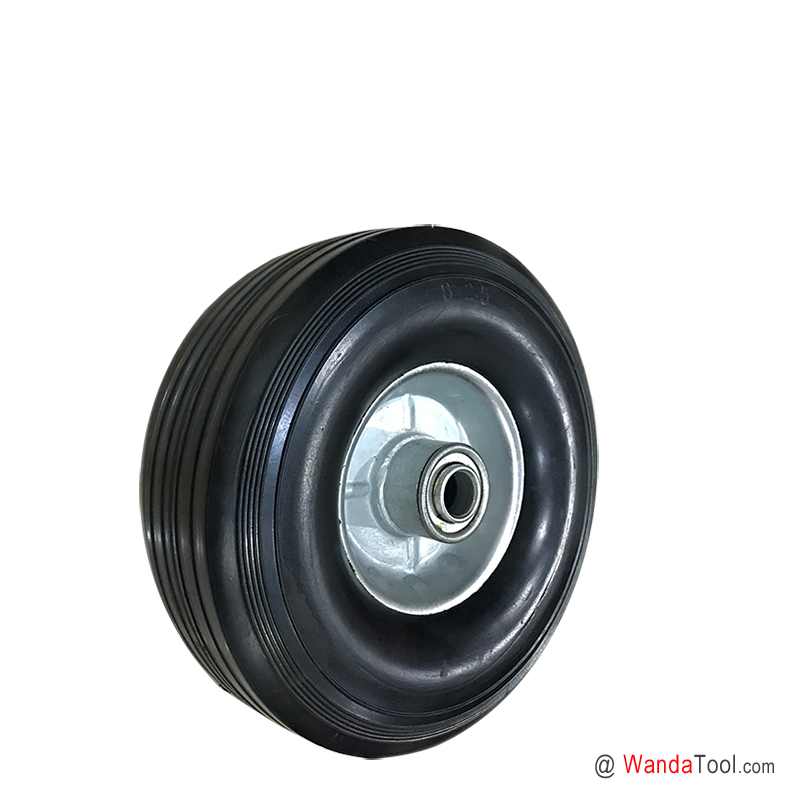

      8×2.5 inch Rubber wheel with steel core - 265 lbs Capacity | WHL-200063DFB-82







      • Part No.: WHL-200063DFB-82
        •

      • Wheel Dia.: 200 mm / 8 inch
        •









      • Tread Width: 63.5 mm / 2.5 inch
        •

      • Hub Length: 56 mm
        •









      • Wheel Mat.:  Black rubber
        •

      • Bearing: Flanged ball bearing
        •









      • Load Cap.: 130 kg / 300 lbs
        •

      • APP: Trolley wheel
        •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























      Technical Data


      WHEEL TECHNICAL°C / mm / kg°F / inch / lbs
      Wheel Diameter201 mm8 inch
      Tread Width63.5 mm2.5 inch
      Wheel Hub MaterialSteelSteel
      Wheel Hub ColorZinc platedZinc plated
      Hub Length (Plain Bore)57.5 mm2.26 inch
      Plain Bore ID35 mm1.38 inch
      Wheel Tread MaterialRubberRubber
      Wheel Tread ColorBlackBlack
      Hardness of Tread

      Wheel BearingDouble pressed bearingDouble pressed bearing
      Bearing PositionCenteredCentered
      Bearing ID16 mm0.63 inch
      Hub Length (With Bearing)62 mm2.44 inch
      Bearing Bushing SizeN/AN/A
      Bushing MaterialN/AN/A
      Wheel Axle SizeN/AN/A
      Wheel Axle MaterialN/AN/A
      Load Capacity130 kg300 lbs
      Wheel Weight2.65 kg5.9 lbs
      Part NumberWHL-200063DFB-82WHL-200063DFB-82
      SKU68200000506820000050


      Features

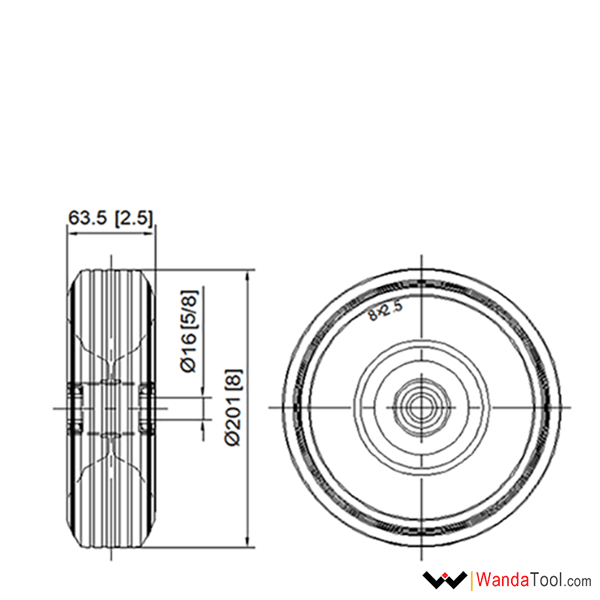

      Drawing
