Scaffold caster-12 inch Scaffold caster-Heavy duty scaffold caster with moldon PU wheel | SCUPB-300075R-13
- Part No.: SCUPB-300075R-13
- Wheel Dia.: 300mm / 12inch caster
- Tread Width: 75mm / 3inch caster
- Wheel Mat.: PU on cast iron core
- Caster Type: Total lock swivel caster
- Fitting Type: Top plate caster
- Load Cap.: 1500kg / 3500 lbs caster
- APP: Scaffolding caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 300mm | 12inch |
| Width of Tread | 75mm | 3inch |
| Wheel Material | PU on semi steel | PU on semi steel |
| Hardness of Tread | Shore A 95 | Shore A 95 |
| Wheel Bearing | Roller bearing | Roller bearing |
| Fastening Type | Top plate | Top plate |
| Size of Plate | 169×120mm | 6.67×4.74inch |
| Plate Hole Centres | 133×86 / 125×62.5mm | 5.24×3.39 / 4.93×2.5inch |
| Plate Hole | 14.0mm | 0.55inch |
| Swivel Offset | 75mm | 2.95inch |
| Swivel Radius | 226mm | 8.89inch |
| Overall Height | 376mm | 14.8inch |
| Caster Brake | Total lock caster | Total lock caster |
| Load Capacity | 1500kg | 3000lbs |
| Caster Weight | 21kg | 46lbs |
| Standard | ||
| Part Number | SCUPB-300075R-13 | SCUPB-300075R-13 |
| SKU | 6930000010000 | 6930000010000 |
Features
12 inch Heavy duty scaffold locking caster with PU on semi steel core wheel | SCUPB-300075R-13
12-inch Mold-on polyurethane on semi steel core heavy duty scaffold caster are equipped with total lock brakes. This is a heavy-duty universal caster specially designed for the standing and short-distance movement of heavy equipment and heavy construction scaffolding equipment. 3500lbs load capacity per caster. This caster features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCUPB series caster has the characteristics of scientific design, convenient operation and safe use.
FEATURES
? Top plate: The integrally formed 1045 cast steel top plate can effectively prevent deformation. King bolt and nut construction for added strength.
? CNC high-precision machining double ball raceway designed with grease fitting, easy to maintain and maintain
? The housing is made of high-quality pressed thick steel and double-sided welding, which can withstand high load environment.
? Features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.
? Moldon polyurethane on semi steel wheel with high strength and large size roller bearing.
? SGS Test report available.
CUSTOM MADE 12INCH SCAFFOLD CASTER AVAILABLE

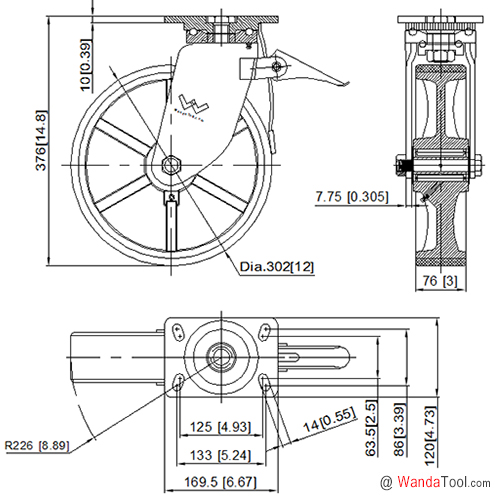

Drawing
Accessories & Versions
Accessories
Versions
Veiw 12inch Scaffold Caster By Mobile
 |
12"x3" Heavy Duty Locking Caster Tags
| 12inch Caster SCU12 Scaffold caster 12inch Heavy duty caster 12"x3" Heavy Duty Locking Caster 12inch Scaffold caster with total lock |
