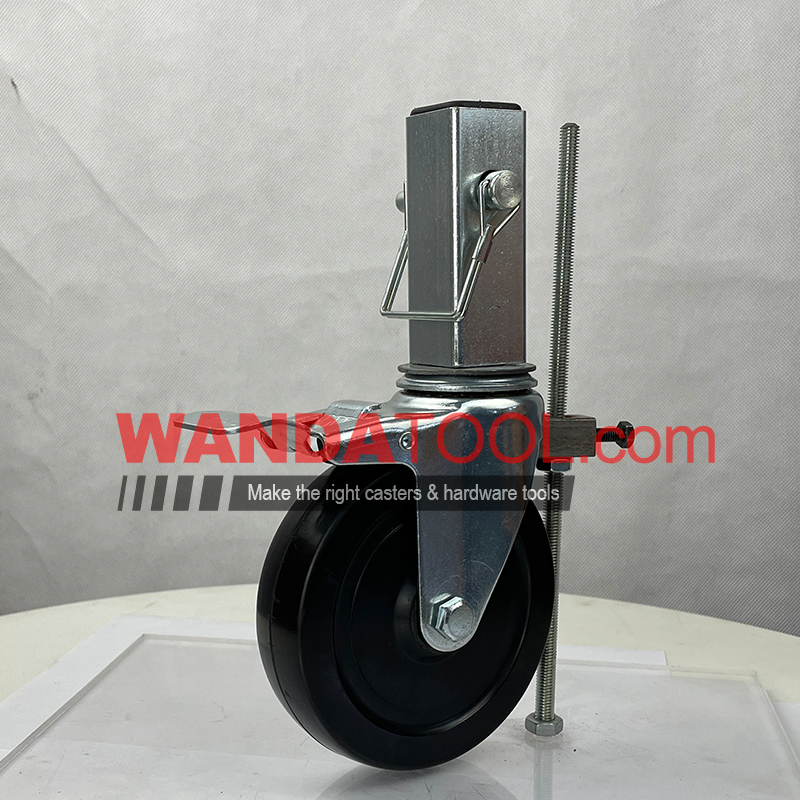

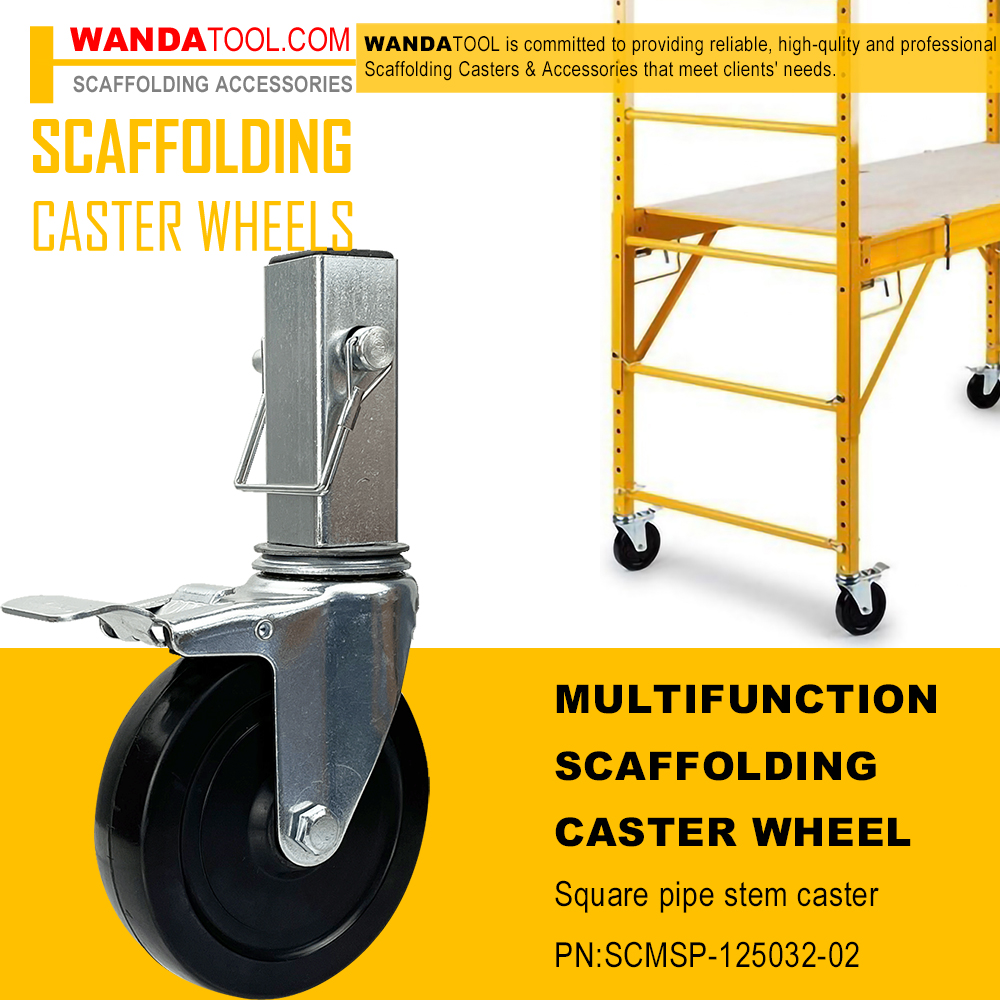

      5" Multifunction scaffolding caster - Square pipe stem locking caster - Rubber wheel caster | SCMSP-125032-02







      • Part No.: SCMSP-125032-02
        •

      • Wheel Dia.: 125 mm / 5 inch caster
        •









      • Tread Width: 32 mm / 1.25 inch caster
        •

      • Wheel Type.: Rubber wheel caster
        •









      • Caster Type: Swivel with total lock caster
        •

      • Fitting Type: Square pipe stem caster
        •









      • Load Cap.: 120 kg / 265 lbs caster
        •

      • APP: Scaffolding caster
        •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























      Technical Data


      CASTER TECHNICAL°C / mm / kg°F / inch / lbs
      Wheel Diameter (D)125 mm5 inch
      Width of Tread (W)32 mm1.25 inch
      Wheel MaterialBlack rubber wheel
      Hardness of Tread85 Shore A
      Wheel BearingPlain bore
      Caster BrakeTotal lock brake swivel caster
      Fitting TypeSquare pipe stem caster
      Square Pipe Type (A×B)32×32 mm1.26×1.26 inch
      Square Pipe Length (L)92 mm3.62 inch
      Hole Spacing (L1)63.5 mm2.5 inch
      Hole diameter (P)12.7 mm0.5 inch
      Hole Spacing (L2)N/AN/A
      Hole diameter (P2)N/AN/A
      Swivel Offset (E)28 mm1.1 inch
      Swivel Radius (R)88 mm3.5 inch
      Load Height (H)155 mm6.10 inch
      Load Capacity120 kg265 lbs
      Caster Weight1.37 kg3.02 lbs
      Packing4PCS/CTN
      Remark
      Part No.SCMSP-125032-02
      SKU6912500771


      Features


      5" Multifunction scaffolding caster - Square pipe stem locking caster - Rubber wheel caster | SCMSP-125032-02
      SCMSP series Economic multifunction casters made for use with multifunction units, otherwise known as Perry-style or bakers scaffolding are made of 2.3mm steel plate. These square pipe stem scaffold casters are designed to fit square tube posts form mobile shelf carts and other transport units. Easy to install-simply remove adjustable foot assembly on each post, and gently tap the casters into the post until fully inserted. The tread provides good floor protection along with quiet operation.

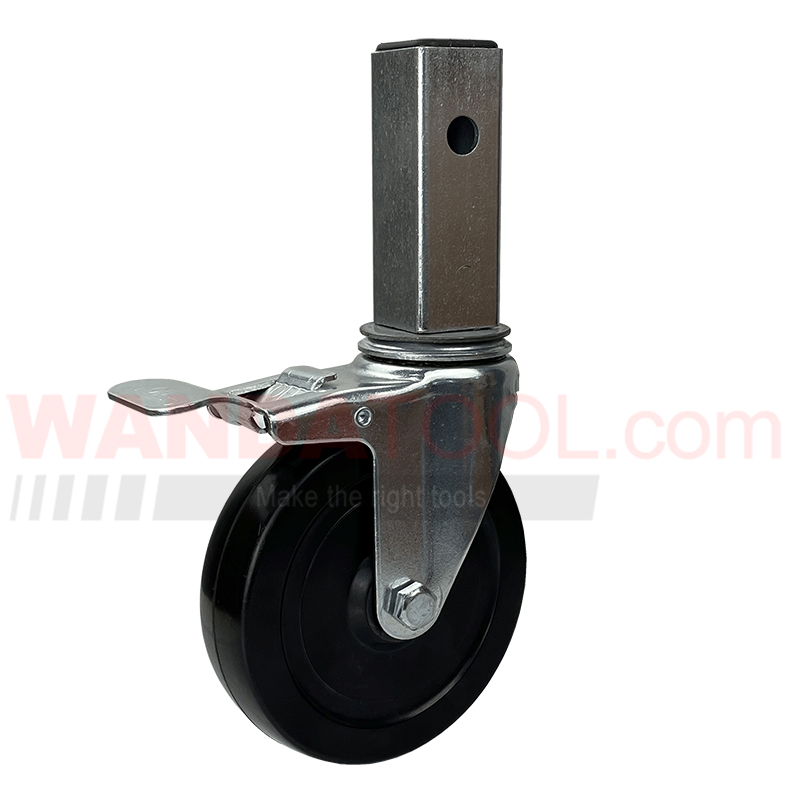

      Featured 5 inch square pipe stem scaffold caster with black rubber wheel
      • Castor Housing: The housing is made of high-quality pressed
	steel.
      • Mounting and Swivel Cross Section: 1.25 inch square pipe stem type with cross drilled hole scaffolding caster. Pressed steel double ball raceway in swivel head.
      •
	Total Lock: Integrated brakes lock caster and wheel simultaneously.
      • Black rubber wheel
      • Square pipe stem is light and economy
      Custom Made 5" Multifunction scaffolding caster with black rubber wheel
      • For customization & special application options, consult please.

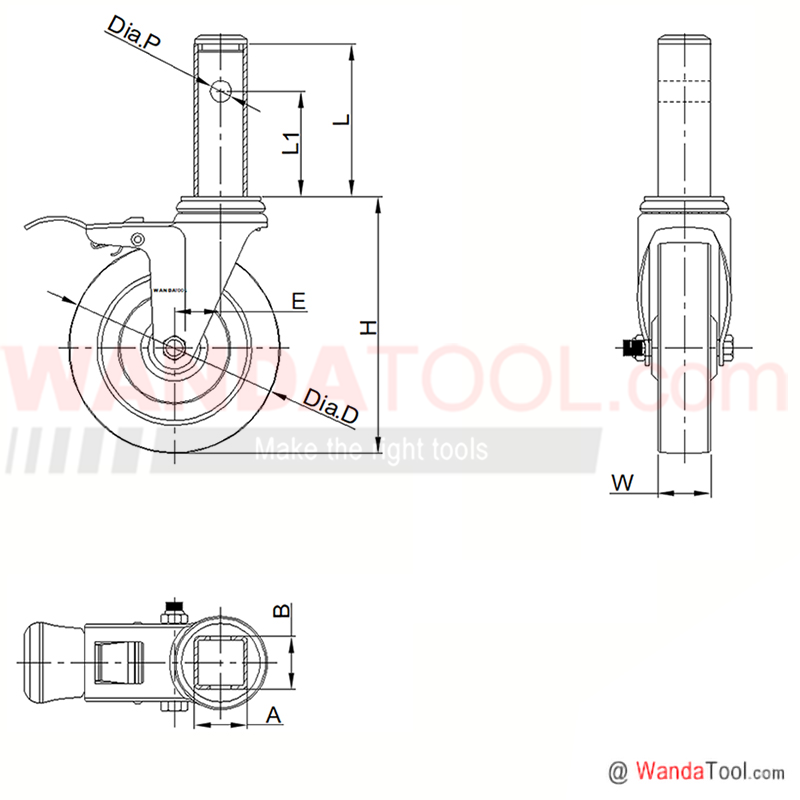

      Drawing
