      Casters



                   Home    >>    Products    >>    Casters






















                                small

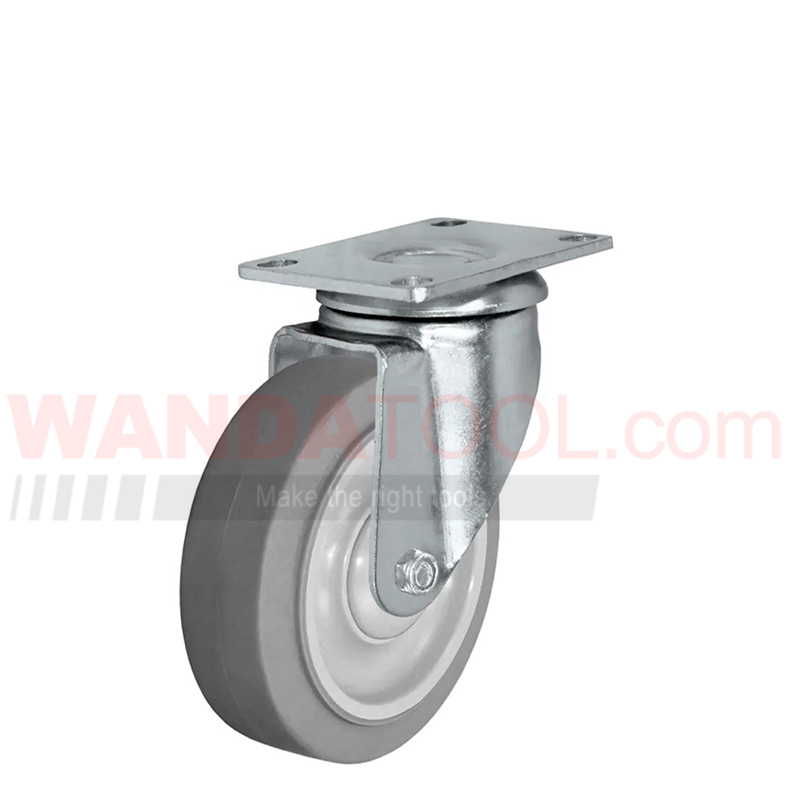

      5"×1.25" TPR thermoplastic rubber wheel - Swivel top caster - 325lbs capacity | 330PS-125032ANB-92GF







      • Part No.: 330PS-125032ANB-92GF
        •

      • Wheel Dia.: 126mm / 5inch caster
        •









      • Tread Width: 32mm / 1.25inch caster
        •

      • Wheel Type: Grey TRP wheel
        •









      • Caster Type: Swivel caster
        •

      • Fitting Type: Top plate caster
        •









      • Load Cap.: 147kg / 325 lbs caster
        •

      • APP: Light-Medium duty casters
        •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























      Technical Data


      CASTER TECHNICAL°C / mm / kg°F / inch / lbs
      Wheel Diameter (D)126 mm5 inch
      Width of Tread (W)32 mm1.25 inch
      Wheel MaterialGrey TPR on PP core wheel
      Hardness of Tread65 to 75+/-5 Shore A
      Wheel BearingAnnular ball bearing
      Caster BrakeSwivel caster without brake
      Fitting TypeTop plate
      Plate Size (A×B)93×63 mm3.63×2.5 inch
      Hole Centers (X×Y -  X'×Y')78×45 - 70 mm3.06×1.75 - 2.79 inch
      Plate Hole (P)8.2 mm0.32 inch
      Swivel Offset (E)32 mm1.26 inch
      Swivel Radius (R)96 mm3.81 inch
      Load Height (H)156mm6.18 inch
      Load Capacity147 kg325 lbs
      Caster Weight0.95 kg2.2 lbs
      Packing30PCS/CTN
      RemarkROHS


      Features


      5"×1.25" TPR Thermoplastic Rubber Wheel - Swivel Top Caster - 300 lbs Capacity | 330PS-125032ANB-92GF
      330 Series performance TPR (Thermoplastic Rubber) or TPE (Thermal Plastic Elastomer) wheel caster is specially engineered to provide unsurpassed durability and reliability. Non-marking thermoplastic elastomer flat tread is permanently bonded to a ribbed polyolefin wheel core. WandaTool TPR wheel offers the advantages of both hard and soft tread materials in a single wheel. Like a hard tread wheel, TPR wheel rolls easily and is very durable. Like a soft tread wheel, it rolls quietly, protects floors and resists impacts with a cushion ride. Absorbs shock to help protect equipment.
      Featured 5"×1.25" Swivel top caster with thermoplastic rubber (TPR) wheel
      • Castor Housing: The housing is made of high-quality pressed steel.
      • Pressed steel double ball raceway in swivel head.
      • Maximum weather-ability and resistance to chemicals, water and steam
      • Rejects floor debris, such as metal shavings, for long service life
      Custom Made 5"×1.25" Swivel top caster with thermoplastic rubber (TPR) wheel
      • For customization & special application options, consult please.






      Drawing



      Accessories & Versions



      Download
