V-Grooved track wheel casters - 6×2 inch V-groove cast iron rigid caster - 1100 lbs Capacity | 600PF-150050R-01VG

Part No.:600PF-150050R-01VG
Wheel Dia.: 150 mm / 6 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Type: V-Groove cast iron wheel

Caster Type: Rigid caster
Fitting Type: Top plate caster

Load Cap.: 500 kg / 1100 lbs caster
APP: Medium heavy duty caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about V-Grooved track wheel casters - 6×2 inch V-groove cast iron rigid caster - 1100 lbs Capacity \| 600PF-150050R-01VG.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	150 mm	6 inch
Tread Width	50 mm	2 inch
Wheel Material	V-Grooved cast iron wheel	V-Grooved cast iron wheel
Hardness of Tread
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Top plate caster	Top plate caster
Size of Plate	115×100 mm	4.5×4 inch
Plate Hole Centers	92×75 to 75×67 mm	3.625×3 to 3×2.625 inch
Plate Hole	11 mm	0.43 inch
Swivel Offset	N/A	N/A
Swivel Radius	N/A	N/A
Overall Height	189 mm	7.45 inch
Caster Brake	No brake rigid caster	No brake rigid caster
Standard
Load Capacity	500 kg	1100 lbs
Caster Weight
Part No.	600PS-150050R-01VG	600PS-150050R-01VG
SKU	6915006070	6915006070

Features

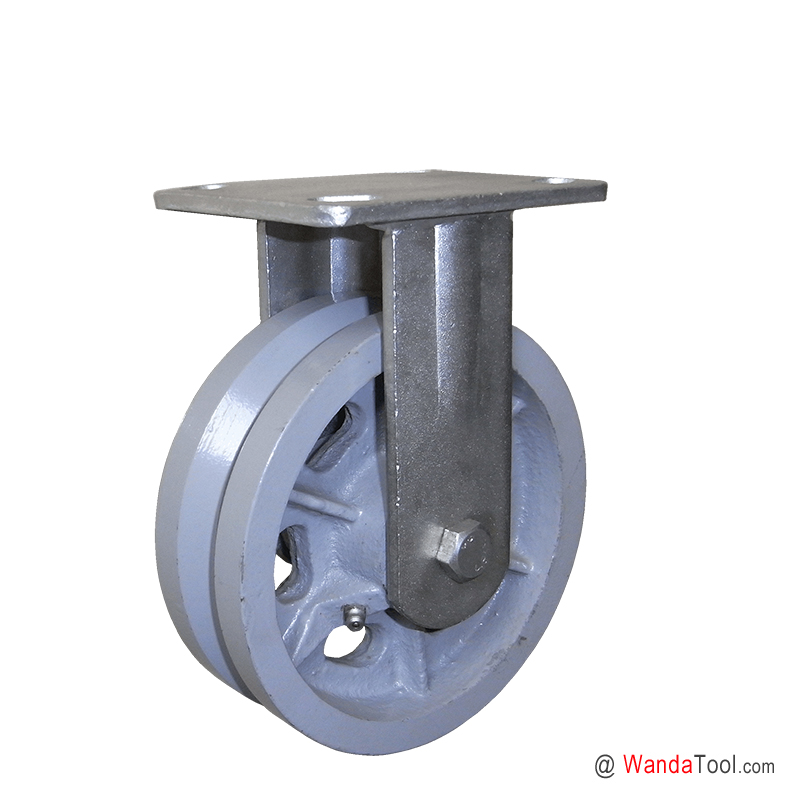

6"×2" V-groove track cast iron wheel caster | 600PF-150050R-01VG

6"×2" V-groove wheel caster is designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the V-groove allows for use on smooth floors.Whether you’re using them for industrial purposes or on a sliding barn door, WandaTool v-groove casters are a great option in very specific situations.

Featured 6"×2" Medium heavy duty cast iorn V-groove track wheel caster

Top Plate: Cold formed from 6mm steel plate.
Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
Finish: Zinc plated to resist corrosion.

Custom made 6"×2" Medium heavy duty cast iorn V-groove track wheel caster

Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.
Side Washers: Metal step retaining thrust washers available.
Wheel Axle: 1/2-13 UNC hollow axle with grease fitting available.
Finish: Electrophoresis black plated to resist corrosion available.
