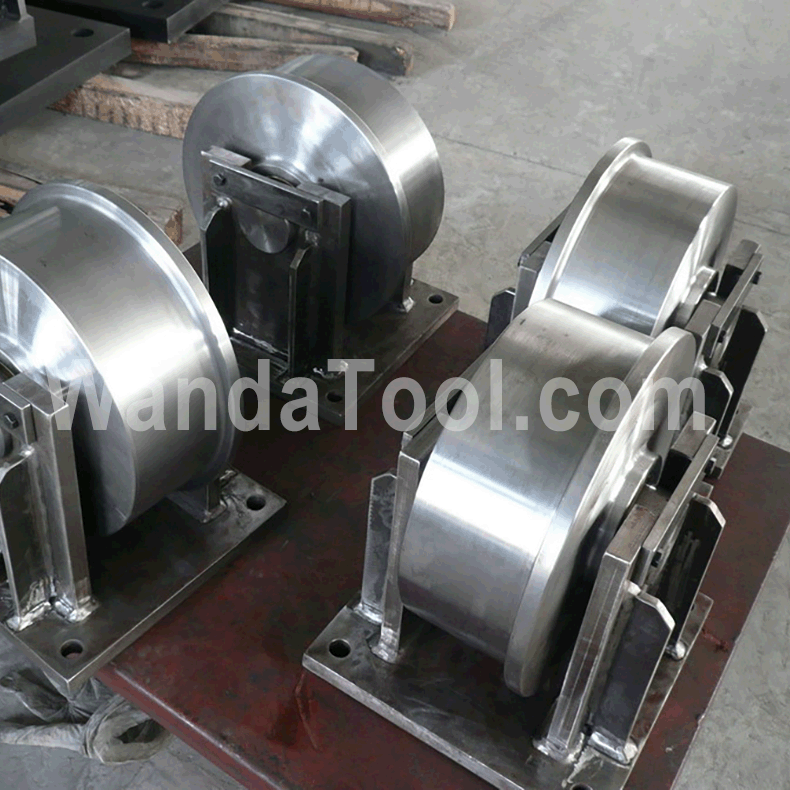

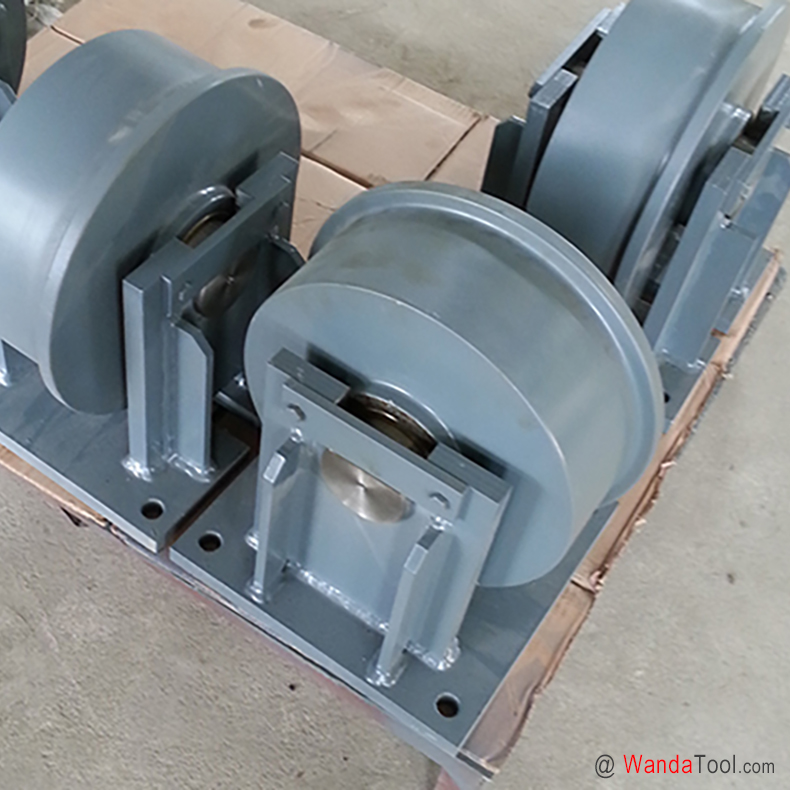

Transformer roller wheel - 250mm Single flange steel wheel caster - 20tons Load capacity | TC250A-250095-280015-S-SF
- Part No.: TC250A-250095-280015-S-SF
- Wheel Dia.: 250 mm / 10 inch
- Tread Width: 110 mm / 4.33 inch
- Wheel Mat.: Machined steel wheel
- Type: Flanged steel wheel
- Mounting: Top plate
- Load Cap.: 20000 kg / 44090 lbs
- APP: Flanged transformer roller
Technical Data
| 腳輪產品參數 | °C / mm / kg | °F / inch / lbs |
| 輪子直徑(D) | 250mm | 10" |
| 輪面寬度(W) | 110mm | 4.33" |
| 輪子材質 | 全鐵腳輪 | 全鐵腳輪 |
| 輪面硬度 | ||
| 輪子軸承 | 無 | 無 |
| 裝配方式 | 平板式式腳輪 | 平板式腳輪 |
| 裝配板尺寸 (A×B) | 280×280mm | 11.03"×11.03" |
| 裝配孔距 | 230×230mm | 9.05×9.05" |
| 裝配板厚 | mm | |
| 裝配孔徑(ØP1) | Φ20×4 | Φ0.78"×4 |
| 裝配總高 | 310mm | 7.2" |
| 腳輪剎車 | 無剎車腳輪 | 無剎車腳輪 |
| 腳輪載荷 | 20000kg | 44090lbs |
| 產品重量 | ||
| 工作溫度 | ||
| 執行標準 | ||
| 產品編號 | TC250A-250095-280015-S-SF | TC250A-250095-280015-S-SF |
| SKU | 6925000940000 | 6925000940000 |
Features
直徑250變壓器腳輪承重20噸 | TC250A-250095-280015-S-SF2
250變壓器T型軌道輪腳輪承重20噸，支架采用10mm鋼板沖壓成型，表面噴漆處理。
變壓器腳輪定制
可根據客戶要求定制生產。
Drawing
Accessories & Versions
Download
Previous product：Transformer roller with brake - 150mm Cast iron caster - 3600kg Load capacity | TC150B-150050-01H6-SBM12
Next product：Transformer roller - 300mm Single flange steel wheel caster - 25tons Load capacity | TC300A-300105-330015-S-SF
