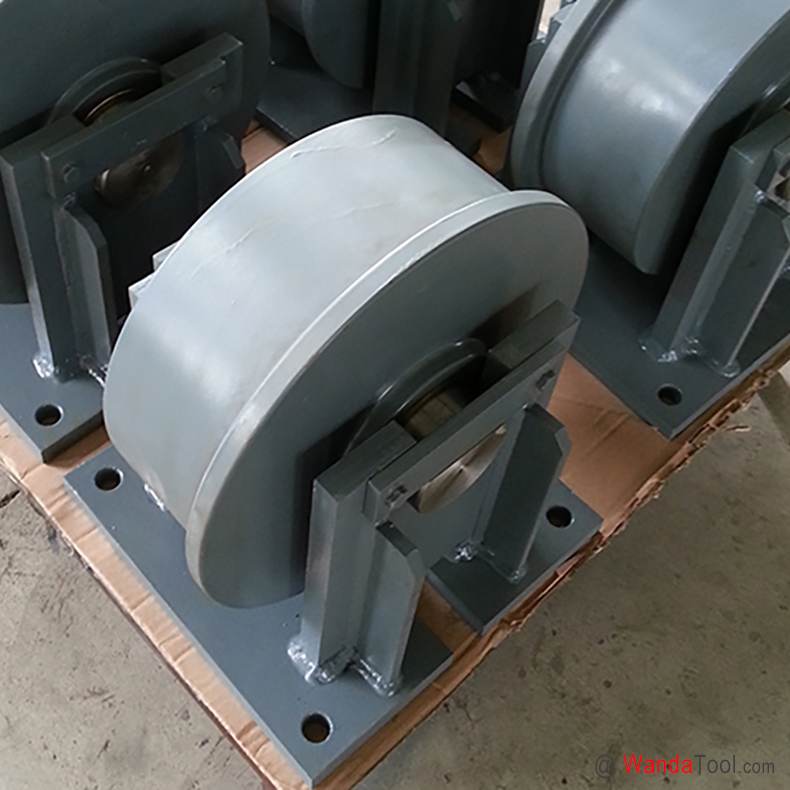

Transformer roller - 300mm Single flange steel wheel caster - 25tons Load capacity | TC300A-300105-330015-S-SF
- Part No.: TC300A-300105-330015-S-SF
- Wheel Dia.: 300 mm / 12 inch
- Tread Width: 135 mm / 5.3 inch
- Wheel Mat.: Machined steel wheel
- Type: Flanged steel wheel
- Mounting: Top plate
- Load Cap.: 25000 kg / 55110 lbs
- APP: Flanged transformer roller
Technical Data
| 腳輪產品參數 | °C / mm / kg | °F / inch / lbs |
| 輪子直徑(D) | 300mm | 12" |
| 輪面寬度(W) | 135mm | 5.31" |
| 輪子材質 | 全鐵腳輪 | 全鐵腳輪 |
| 輪面硬度 | ||
| 輪子軸承 | 無 | 無 |
| 裝配方式 | 平板式式腳輪 | 平板式腳輪 |
| 裝配板尺寸 (A×B) | 310×310mm | 12.2"×12.2" |
| 裝配孔距 | 250×250mm | 10×10" |
| 裝配板厚(t) | 20mm | 0.78" |
| 裝配孔徑(ØP1) | Φ38×4 | Φ1.5"×4 |
| 裝配總高 | 360mm | 14.2" |
| 腳輪剎車 | 無剎車腳輪 | 無剎車腳輪 |
| 腳輪載荷 | 25000kg | 55110lbs |
| 產品重量 | ||
| 工作溫度 | ||
| 執行標準 | ||
| 產品編號 | TC300A-300105-330015-S-SF | TC300A-300105-330015-S-SF |
| SKU | 6930000950000 | 6930000950000 |
Features
直徑300變壓器腳輪承重25噸 | TC300A-300105-330015-S-SF
300變壓器T型軌道輪腳輪承重25噸，裝配板采用20mm鋼板加工焊接成型，表面噴漆處理。
變壓器腳輪定制
可根據客戶要求定制生產。
Drawing
Accessories & Versions
Download
Previous product：Transformer roller wheel - 250mm Single flange steel wheel caster - 20tons Load capacity | TC250A-250095-280015-S-SF
Next product：380變壓器軌道輪腳輪承重60噸 | TC380B-D380122-410030-S-SF
