      Nose Roller - 4 x 4 Nose Roller with Axle For Roll-Off Containers | WHL-101101-S-AX038165







      • Part No.: WHL-101101-S-AX038165
        •

      • Wheel Dia.: 101 mm / 4 inch
        •









      • Tread Width: 94.6 mm / 3.73 inch
        •

      • Hub Length: 101 mm / 4 inch
        •









      • Wheel Mat.: Steel nose roller
        •

      • Bearing: Plain bore
        •









      • Load Cap.: 18150kg kg / 40,000 lbs
        •

      • APP: Nose roller for roll-off containers
        •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























      Technical Data


      WHEEL TECHNICAL°C / mm / kg°F / inch / lbs
      Wheel Diameter101 mm4 inch
      Tread Width94.6 mm3.73 inch
      Wheel Hub MaterialSteelSteel
      Wheel Hub ColorBlack paintBlack paint
      Hub Length (Plain Bore)101 mm4 inch
      Plain Bore ID38 mm1.5 inch
      Wheel Tread MaterialN/AN/A
      Wheel Tread ColorN/AN/A
      Hardness of Tread

      Wheel BearingN/AN/A
      Bearing PositionN/AN/A
      Bearing IDN/AN/A
      Hub Length (With Bearing)N/AN/A
      Bearing Bushing SizeN/AN/A
      Bushing MaterialN/AN/A
      Wheel Axle SizeDia.38×165Dia.1.5×6.5
      Wheel Axle MaterialSteelSteel
      Load Capacity18,150 kg40,000 lbs
      Wheel Weight5.75 kg12.6 lbs
      Part NumberWHL-101101-S-AX038165WHL-101101-S-AX038165
      SKU68101000306810100030


      Features


      Manufacture and Explore a wide range of the best Nose roller,Steel nose roller,4 x 4 Nose roller,Nose roller with axle,Nose roller for roll-off containers on WandaTool to find one that suits you! China Wanda 4 x 4 Nose Roller with Axle For Roll-Off Containers, WHL-101101-S-AX038165 is a 4" by 4" nose roller with 40,000 lbs capacity and greasable shaft. Nose Rollers are most often utilized as guides to assist Roll-Off containers, but can also be used for other heavy duty applications.

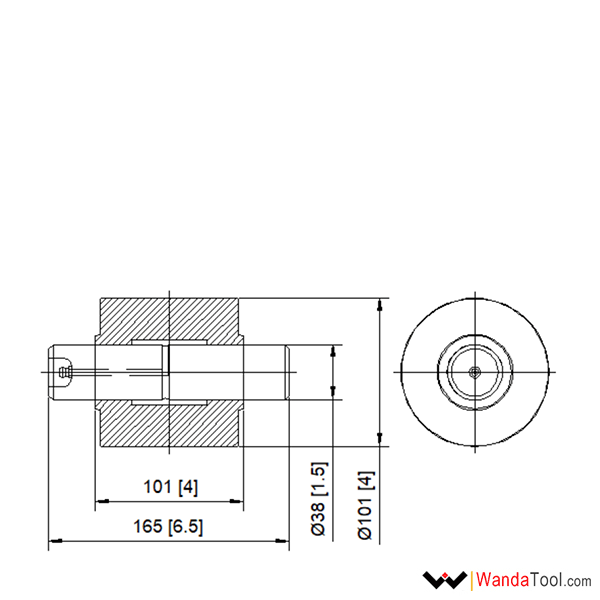

      Drawing



      Accessories & Versions
